Installing the right-hand level sensor

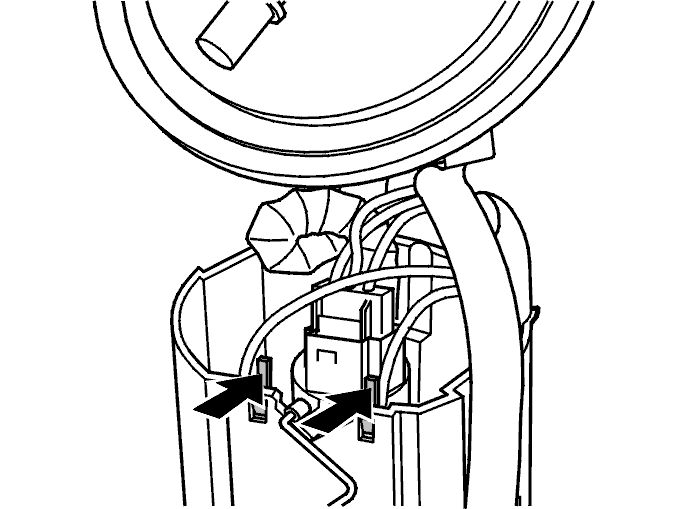

Fig 1: Level Sensor Retaining Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the new level sensor
• the wiring in the holder
• the thin pipe in the holder on the outside of the fuel tank unit
• the tie strap around the wiring above the pump.

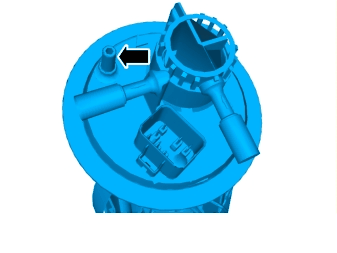

Fig 2: Fuel Tank Unit Hole Connection

Courtesy of VOLVO CARS OF NORTH AMERICA.

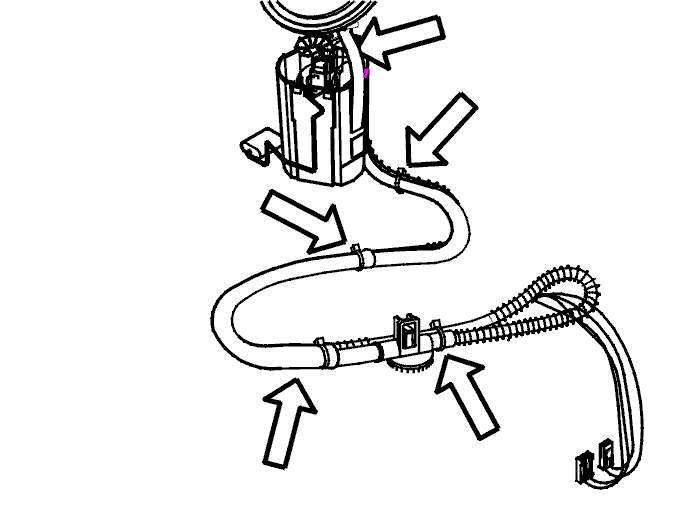

Fig 3: Identifying Tie Straps Around Protective Sheath, Hoses And Wiring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the tie strap under the protective sheath
  NOTE:

  Secure the tie strap on the smooth central section of the corrugated hose.

• the protective sheath
• four tie straps around the protective sheath, hoses and wiring. Secure the tie straps on the four smooth central sections of the corrugated hose.
