Fault-tracing information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

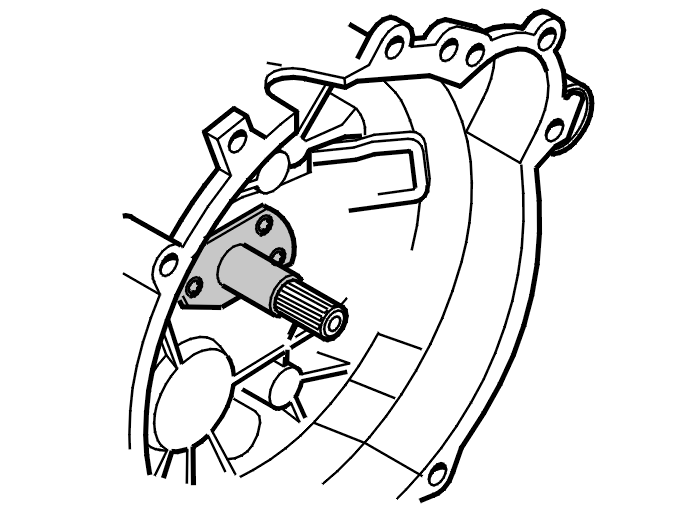

Fig 1: Identifying Throwout Bearing Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to M56/M58/M59 generally.

Does not apply to vehicles with a concentric slave cylinder.

Possible Source

Defective sleeve to throwout bearing.

Fault symptom[s]

Starting off smoothly is difficult
The car vibrates when starting off
The clutch vibrates when starting off
The car / clutch jumps when starting off.
