Fault-tracing information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

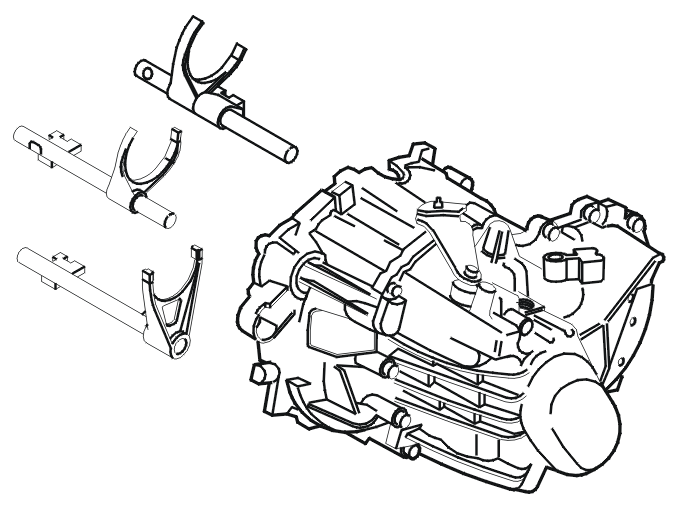

Fig 1: Identifying Selector Shafts

Courtesy of VOLVO CARS OF NORTH AMERICA.

There are three selector shafts in the transmission. One for gears 1-2, one for gears 3-4 and one for gear 5-R. If gear changing between any of these gears seems stiff it is probable that a selector shaft is deformed. It is also possible that two or three selector shafts could be deformed.

Possible Source

Deformed selector shaft
Gear is engaged too forcefully.

Fault symptom[s]

Gear changing is stiff on one or more gears.
