Fault-tracing information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

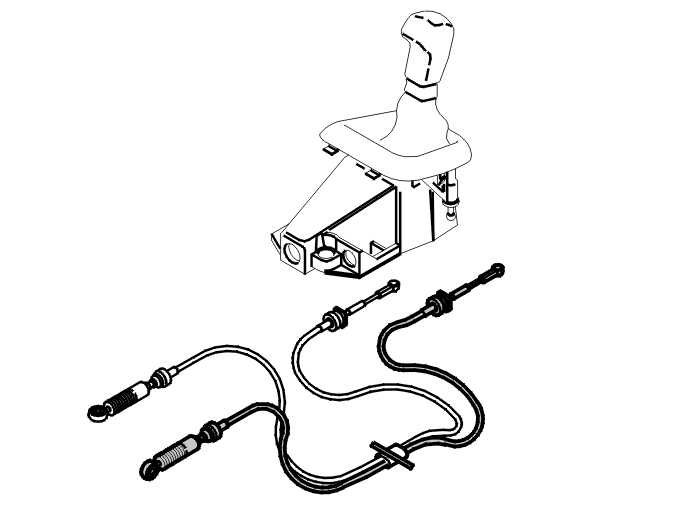

Fig 1: Identifying Mechanical Transmission Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lateral gear selector lever travel to gears 1-2 or gears 5-R.

Possible Source

Defective mechanical transmission cable (for lateral travel)
Defective gear selector lever assembly.

Fault symptom[s]

Lateral movement of the gear selector lever heavy.
