Diagnostic Trouble Code (DTC) Information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

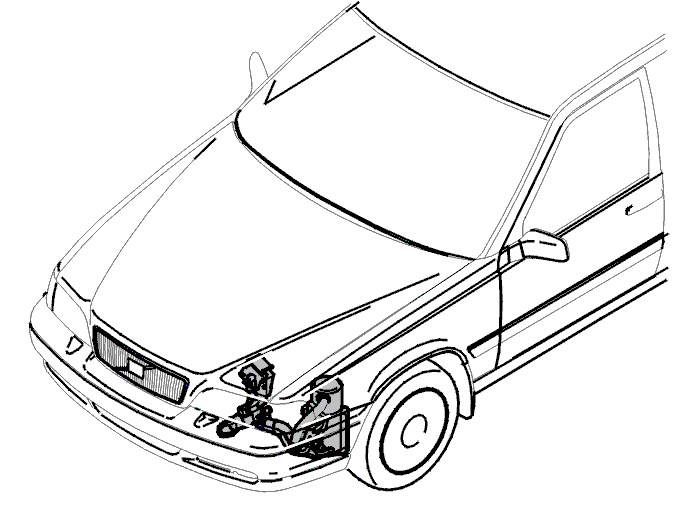

Fig 1: Identifying Control Module Connector And 6-Pin Heater Connector
GLL136806Courtesy of VOLVO CARS OF NORTH AMERICA.

A diagnostic trouble code (DTC) has been stored while the care was being manufactured. There is nothing wrong with the heater.

Substitute Value

None.

Possible Source

Fault symptom[s]
