Fault-Tracing Information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

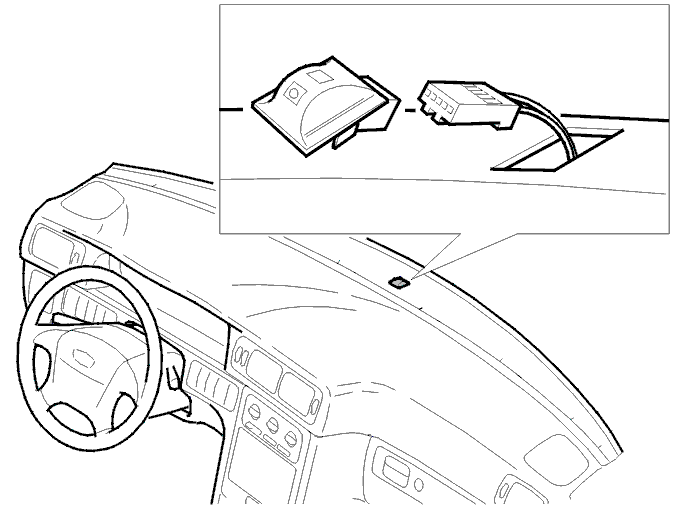

Fig 1: Identifying Sun Sensor And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

No diagnostic trouble codes (DTCs) stored.
The fault is permanent.

NOTE: If the sun sensor is covered the control module will not get the signal for sun intensity and cannot regulate the heat taking this factor into account. Fault causes of this type are not included in the fault-tracing procedure.

Possible Source

Open-circuit, short-circuit to ground or voltage on ground lead to sun sensor.
Open-circuit, short-circuit to ground or voltage on signal cable to sun sensor.
Defective sun sensor

Fault symptom[s]

The passenger compartment temperature is not reduced when sun intensity is high.
