Checking Passenger Compartment Temperature Programming (ECC)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The relation between the temperature in the passenger compartment and the temperature setting on the selector knob can be reprogrammed. The temperature in the car can be increased or reduced by a maximum of 2°C from the normal setting. This allows some account to be taken of the driver's wishes regarding the temperature settings in the car.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition on.
Use the Programming function to read off and program the ECC control module. The programmable temperature is between +/-2°C in 0.5°C steps.
Read off the passenger compartment temperature programming. Make a note of the reading.

Fig 2: Identifying Scan Tool
Courtesy of VOLVO CARS OF NORTH AMERICA.

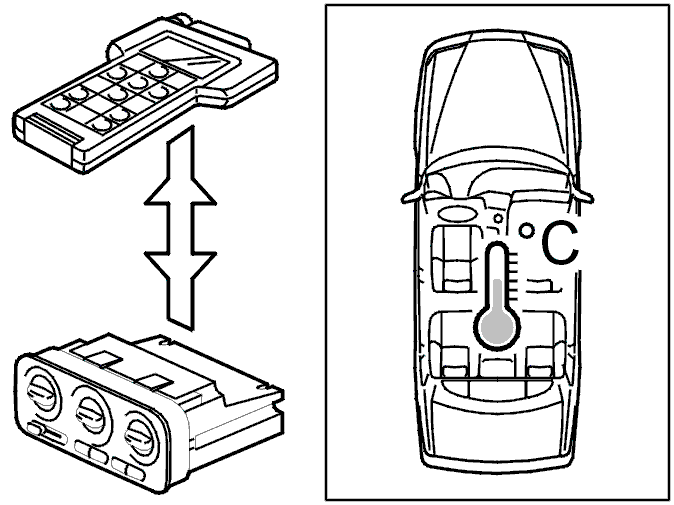

Fig 3: Identifying Passenger Compartment Temperature (ECC)
Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue
OKAY: Troubleshooting has been completed.
