Checking Performance: Preparations

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Start Verification

Courtesy of VOLVO CARS OF NORTH AMERICA.

Start the engine and allow to run 1500-1600 RPM.
Turn the passenger compartment temperature selector to maximum cooling.
Place air conditioning (A/C) switch to on.
Place air distribution selector to VENT.
Place REC-switch to on.
Place blower fan switch to 70% of full speed.
Close hood.
Close doors and windows.
Position a thermometer by one of the central dashboard vents.
Allow the system to stabilize itself for at least 8 minutes.

Fig 2: Identifying Climate Control System
Courtesy of VOLVO CARS OF NORTH AMERICA.

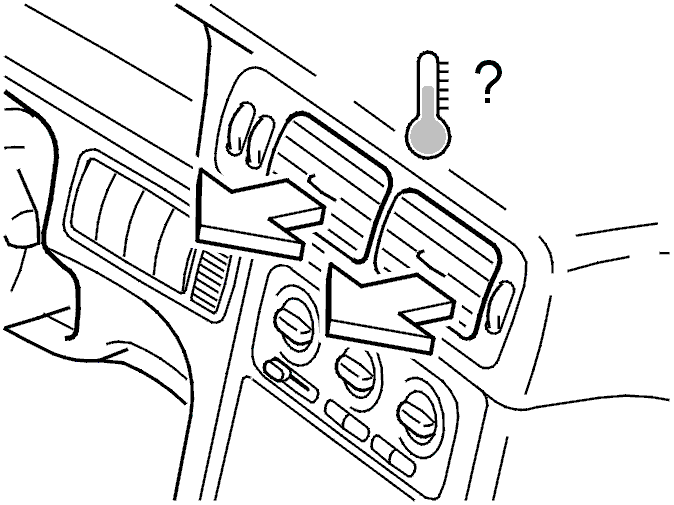

Fig 3: Identifying Temperature in Central Dashboard Vents
Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue
Refer to Checking Air Temperature In The Dashboard Vents
