Fault-Tracing Information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

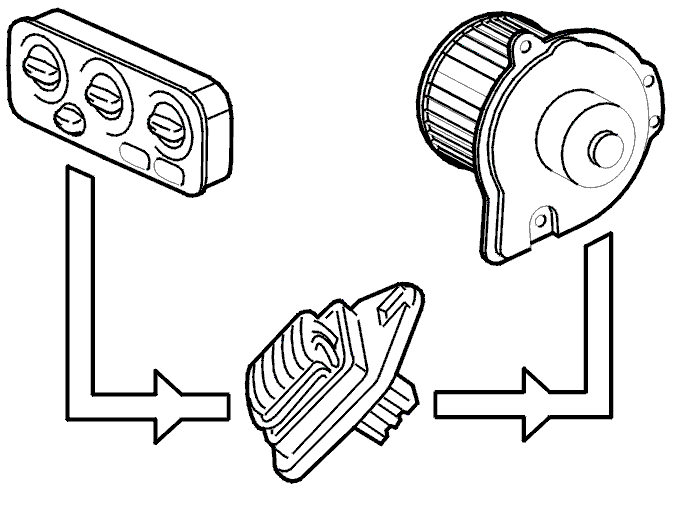

Fig 1: Identifying Blower Fan And Resister

Courtesy of VOLVO CARS OF NORTH AMERICA.

No diagnostic trouble codes (DTCs) stored.
The fault is permanent

Possible Source

Open-circuit on power supply to MCC control module #A4.
Open-circuit or short-circuit voltage on the signal cables between MCC-control module #A1, #A2, #A3, #A5 and fan resistor terminal 2, 6, 4, 1.
Open-circuit on power supply between MCC control module #A6 and blower fan.
Open-circuit on power supply or ground lead to blower fan.
Blower fan or blower fan resistor disconnected.
Contact resistance in terminals.
Defective blower fan.
Defective blower fan resistor.

Fault symptom[s]

Blower fan does not operate.
Blower fan runs at one speed only.
