Fault-Tracing Information

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Condition

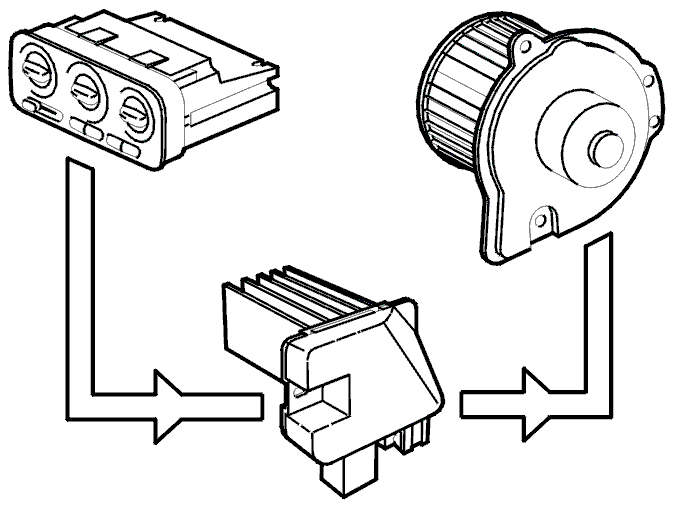

Fig 1: Identifying Blower Fan And Power Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

No diagnostic trouble codes (DTCs) stored.
The fault is permanent

Possible Source

Open-circuit, short-circuit to ground or supply on signal cable between ECC control module #A15 and power unit #A1.
Open-circuit, short-circuit to ground or supply on signal cable between ECC control module #A5 and power unit #A3.
Open-circuit on power supply or ground lead to blower fan.
Blower fan or power unit disconnected.
Contact resistance in terminals.
Defective power unit.

Fault symptom[s]

Blower fan does not operate.
Blower fan runs at one speed only.
