Diagnostic Trouble Code (DTC) Information
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Condition
The ECC control module is enabled to accept new software by reprogramming. If the control module registers that the actual programming of the control module was not correctly carried out diagnostic trouble code (DTC) ECC-441 is stored. However if the control module registers that programming is faulty diagnostic trouble code (DTC) ECC-442 is stored
Substitute Value
None.
Possible Source
Diagnostic trouble code (DTC) ECC 441:

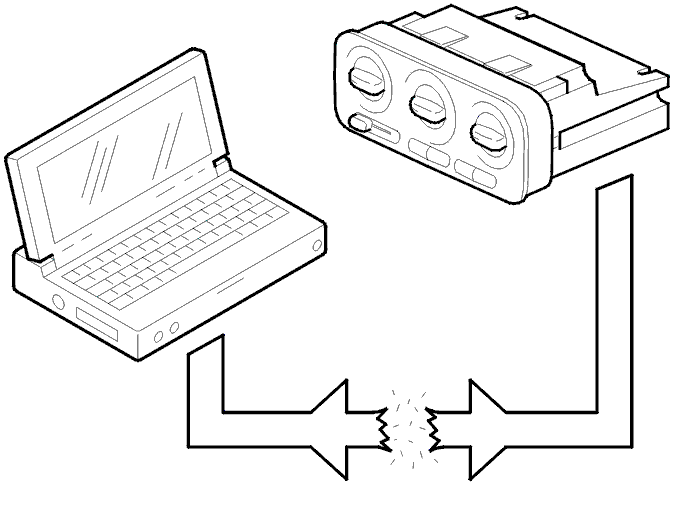

- Programming interrupted, for example by disconnected or defective programming equipment.
- Ignition OFF or power supply to control module interrupted in some other way.
Diagnostic trouble code (DTC) ECC 442:
- Programming interrupted, for example by disconnected or defective programming equipment.
- Ignition OFF or power supply to control module interrupted in some other way.
- Faulty or defective programming equipment.
- Software fault.
- Other external interference etc.
Fault symptom[s]
- Diagnostic trouble code (DTC) ECC 441:
None.
- Diagnostic trouble code (DTC) ECC 442:
Orange indicator LED in REC and air conditioning (A/C) buttons flashes alternately.
