Checking air intake

WARNING: This page is about a different car, the 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Check air intake in front of radiator, air duct, air cleaner (ACL) housing and filter insert for blockage (leaves, paper etc.).
Remedy as necessary.

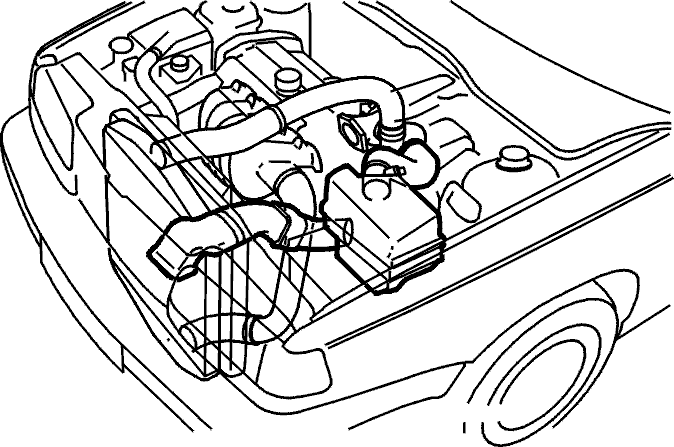

Fig 1: Identifying Air Intake

Courtesy of VOLVO CARS OF NORTH AMERICA.

Was any blockage found?

YES
OKAY: Troubleshooting has been completed.
NO
FAULT NOT FOUND: Troubleshooting has been completed.
