Assembling brake caliper

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

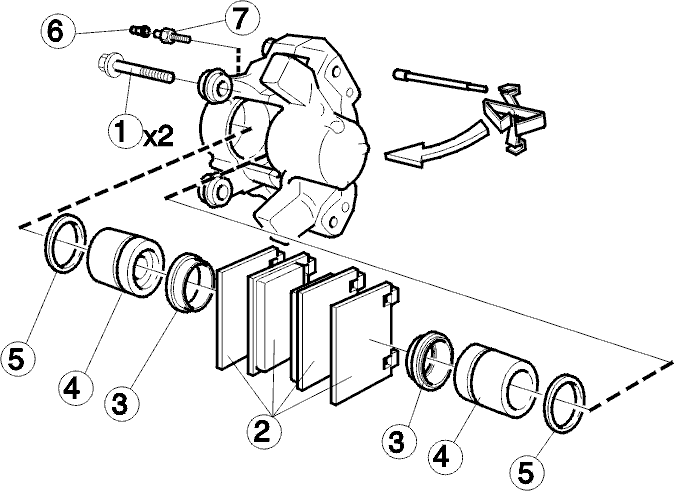

Fig 1: Identifying Dirt Guards, Pistons, O-Rings, And Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Coat pistons, cylinder lining and O-rings with brake fluid.
Install O-rings (5) in cylinder grooves.
Install pistons (4) in brake caliper, one first and then the other.
Install new dirt guard (3).
Check that it fits in its groove in pistons and brake caliper.
Install bleed nipple (7), tighten to 5 Nm (4 ft.lb.).
