Installing bleed nipple

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

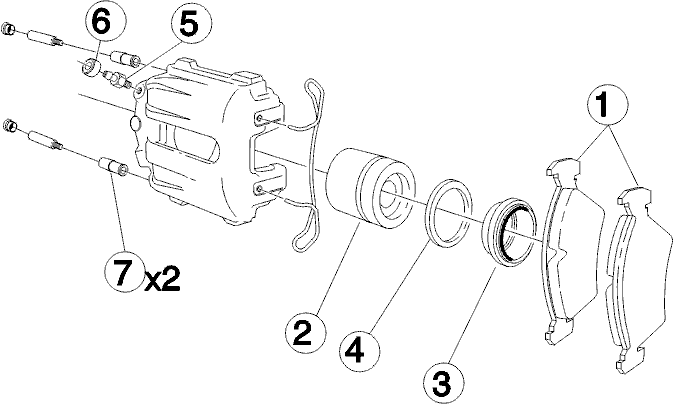

Fig 1: Identifying Dirt Guard, Cylinder Lining Piston, O-Ring, Bleed Nipple, And Rubber Bushings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install dirt guard in groove inside cylinder and push piston in carefully.
Check that dirt guard slots into its groove in the piston.
Check that dirt guard is in position properly.
Install bleed nipple (5), tighten to 9 Nm (7 ft.lb.).
