Brake caliper front, overhaul: Finishing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

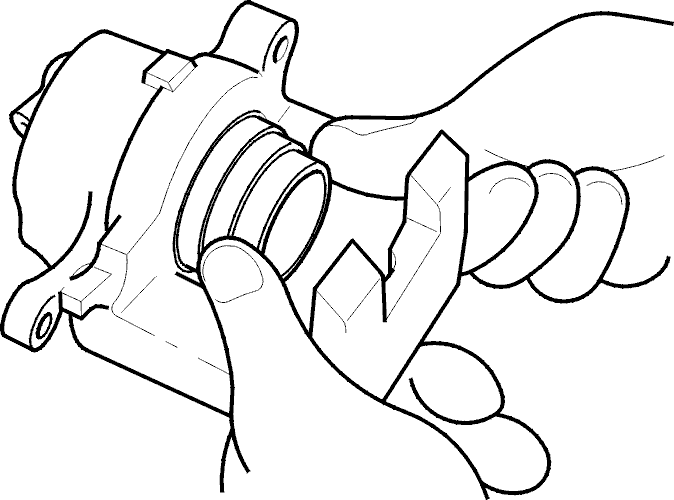

Fig 1: Identifying Rubber Bushings & Brake Caliper

Courtesy of VOLVO CARS OF NORTH AMERICA.

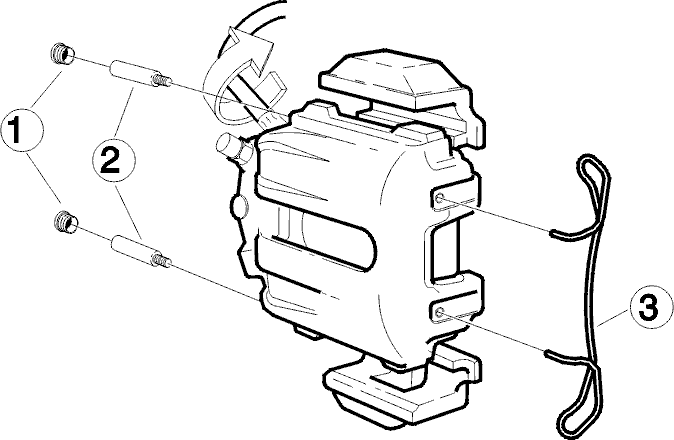

Fig 2: Identifying Protective Caps, Locating Pins, And Retaining Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install rubber bushings in brake caliper.
Screw brake caliper onto hose by hand.
Hang brake caliper up on a steel wire on front spring to avoid damaging hose.
Go to Front brake pads, replacement
