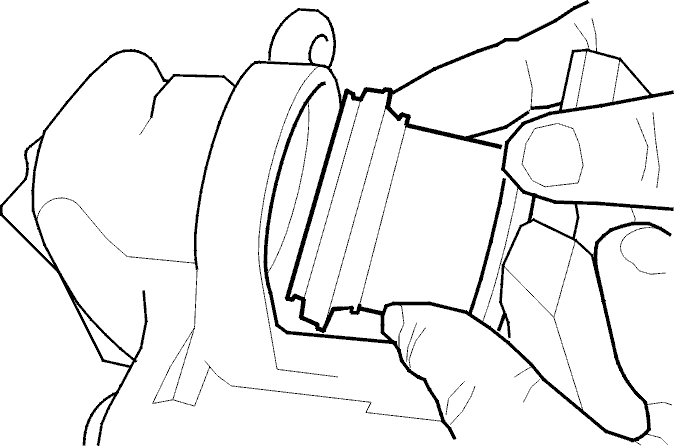

Fig 1: Identifying Dirt Guard & End Of Piston
Courtesy of VOLVO CARS OF NORTH AMERICA.
Blow ducts clean with compressed air.
Coat cylinder lining, piston (2) and new O-ring (4) with brake fluid.
Install lubricated O-ring (4) in groove in cylinder. Install dirt guard in end of piston.
