Remove Turbocharger (TC)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

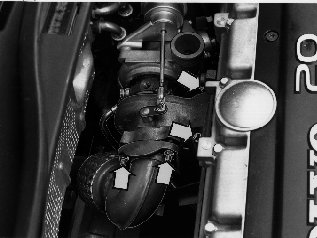

Fig 1: Identifying Turbocharger Component Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove exhaust pipe-turbocharger (TC) nuts.

Remove coolant inlet pipe.

Remove the nuts, turbocharger (TC)-exhaust manifold.
