Install Lower Oil Pipe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

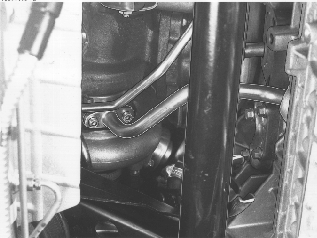

Fig 1: Locating Oil Pipe And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install oil pipe (lubricate O-ring).

Install exhaust pipe bracket screw.

Lower the car.

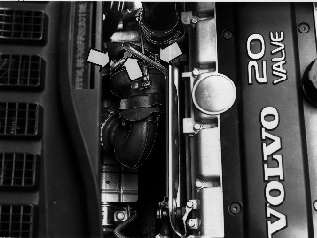

Fig 2: Locating Turbocharger Component Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

oil inlet pipe
Inlet and outlet coolant pipes (remove lock grip pliers)
fresh air intake hose
inner heat deflector plate
upper charge air pipe
outer heat deflector plate

NOTE: Install new copper washers for the coolant pipe and for the upper oil pipe.

Raise the car
