Install Clamp Between Pipes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

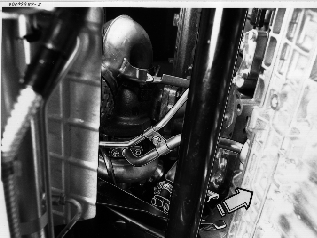

Fig 1: Locating Clamp Between Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove lock grip pliers from coolant return hose.

Lower the car.

Test function

Check boost pressure.

Check oil and coolant levels.

HINT: Diagnostic trouble code (DTC) 3-5-2 can occur after turbocharger replacement, if so reset.
