Disconnect the Components From the Turbocharger

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

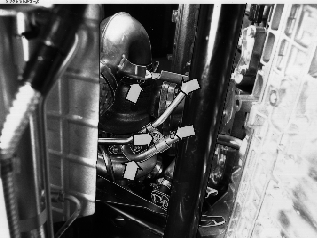

Fig 1: Locating Turbocharger Component Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect upper charge air pipe with lower rubber hose, from the turbocharger (TC) and place it to one side.

Remove fresh air intake.

Remove inner heat deflector plate.

Slacken off the turbocharger (TC) upper coolant return pipe, clamp the coolant hose with lock grip pliers and place the pipe/hose to one side.

Slacken off oil inlet nipple.

Raise the car

Remove

Fig 2: Identifying Turbocharger Component Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

the clamp between pipes
oil return line
exhaust pipe bracket screw
exhaust pipe-turbocharger (TC) nut
exhaust manifold-turbocharger (TC) nuts

Apply lock grip pliers to the coolant inlet hose.

Lower the car.
