Flame Trap Seals, Replacement: Remove

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

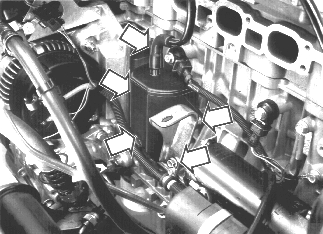

Fig 1: Identifying Oil Trap, Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

the hose from the flame trap
the bracket for the intake manifold
the two screws for the flame trap
oil trap

Check that the flame trap's mating surfaces are clean.
