Install the Flame Trap (Earlier version)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

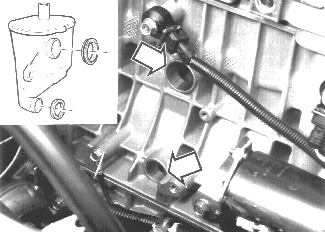

Fig 1: Identifying Flame Trap Seals
GLL125756Courtesy of VOLVO CARS OF NORTH AMERICA.

Install new  seals on the flame trap (lubricate the seals), tighten the seals to 20 Nm  .

Install the intake manifold bracket loosely with the lower screw.

NOTE: If the flame trap tip/turns when tightening, make sure that the seals have not rubbed of their necks on the flame trap.
