Replacing Intake Manifold: Remove

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

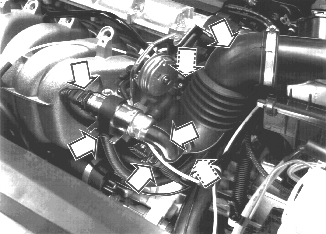

Fig 1: Locating Throttle Body And Attaching Hardware

Courtesy of VOLVO CARS OF NORTH AMERICA.

throttle linkage from pulley
intake air hose to the throttle body
multi-nipple
throttle pulley with bracket and idle speed control valve
throttle body (TB)
clamp for EGR hose (turbocharger (TC)).
pressure hose to turbocharger (TC) instruments/EGR valve control vacuum hose
brake servo hoses

Remove:

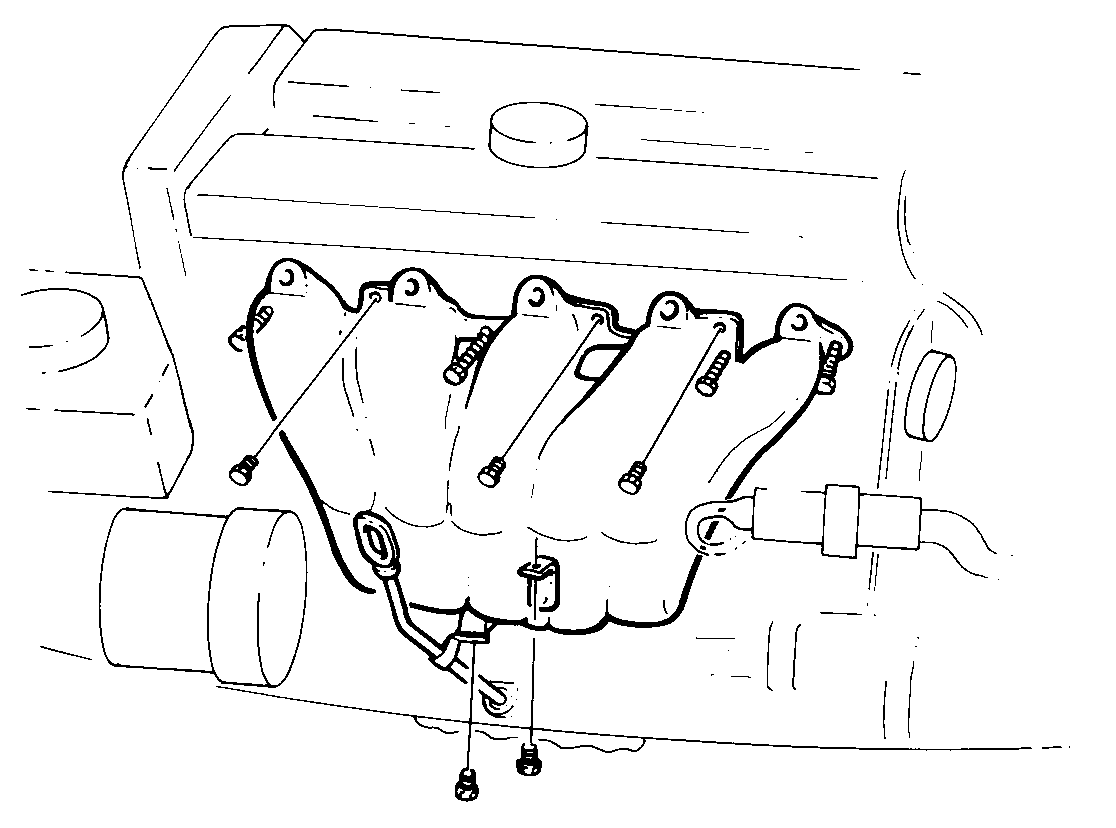

Fig 2: Locating Intake Manifold Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

dipstick bracket
intake manifold screw in lower bracket
lower intake manifold screws a few turns.

Remove:

remove three upper intake manifold screws
intake manifold by lifting it approximately 20 mm . (Allow the crankcase ventilation hose run through the intake manifold without disconnecting it from the flame trap, does not apply to turbocharger (TC) models.
