Replacing Intake Manifold: Install

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intake Manifold And Mounting Surface

Courtesy of VOLVO CARS OF NORTH AMERICA.

a new gasket held in position by the lower intake manifold screws. Do not forget the clamp on the fourth socket turbocharged engines.)
intake manifold. (Do not forget the crankcase ventilation hose which comes up through the gap on the 2nd and 3rd ducts on the S engines.)
the three upper screws and tighten all the screws from the middle to 20 Nm .

Install

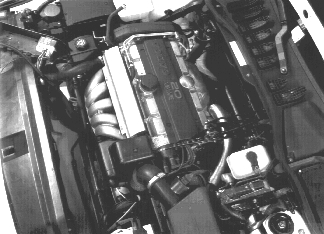

Fig 2: Underhood View

Courtesy of VOLVO CARS OF NORTH AMERICA.

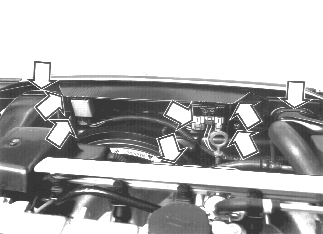

Fig 3: Identifying Attaching Hardware

Courtesy of VOLVO CARS OF NORTH AMERICA.

EGR valve with new gasket if necessary
throttle body with new gasket
throttle pulley
with bracket
multi-nipple and connect hoses
fuel rail and two brackets
injectors wiring and cover
the bracket screw under the intake manifold
dip stick bracket screw
brake servo hoses
air intake hoses
idle air control (IAC) valve
throttle linkage and throttle cable
throttle pulley cover
