Disconnect Fuel Rail With the Injectors

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

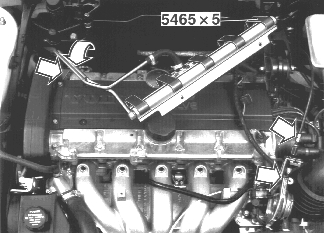

Fig 1: Identifying Fuel Rail And Fuel Lines
GLL125750Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove throttle pulley and injector cover. Remove throttle cable.

Disconnect connectors and mountings from injectors.

Remove the two  fuel line brackets and two fuel rail mounting screws.

Install the five holders 9995533Carefully  pull up the injectors with the fuel rail.

Disconnect hose from canister purge (CP) valve.

Carefully  place fuel rail with injectors on engine.

CAUTION: Injector nozzles with fuel needles must not be damaged.
