Check Air Cleaner (ACL) Housing And Remove Throttle Body (TB)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

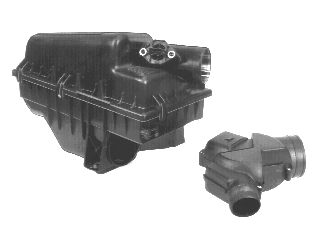

Fig 1: Identifying Air Cleaner Housing And Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the air cleaner (ACL).

Check air cleaner (ACL) housing internally, clean if necessary.

Disconnect air duct terminals.

Carefully pull housing from the mountings.

Remove throttle body (TB) from the air cleaner (ACL) housing by pressing in the spring-loaded catches while pulling the pull out down.
