Assemble Air Cleaner (ACL) Housing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

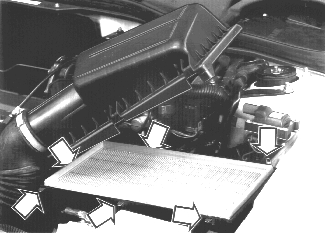

Fig 1: Locating Air Cleaner Element And Housing
GLL125748Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble throttle body (TB).

Install air cleaner (ACL) housing in the car.

Connect all the hoses and connector.

Reinstall air cleaner (ACL) if necessary install a new one.
