25813 Replacing Crankcase Ventilation Pipe, 01/96

At the beginning of October 1995, a modified crankcase ventilation system was introduced. The crankcase ventilation pipe and the flame traps have been modified. The vacuum hose has been moved from the multi-nipple to a nipple cover on the intake manifold at the power steering pump.

At the beginning of November 1995, a further modification was carried out to the crankcase ventilation pipe on engines without a variable intake manifold, i.e. engines with Fenix and Motronic (not turbo) engine management systems.

Fig 1: Identifying Crankcase Ventilation Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

On the engines in question, the pipe introduced in October 1995 appears as in the illustration. This pipe is clamped in the intake manifold rear mounting screw.

This hose is not available as a spare part.

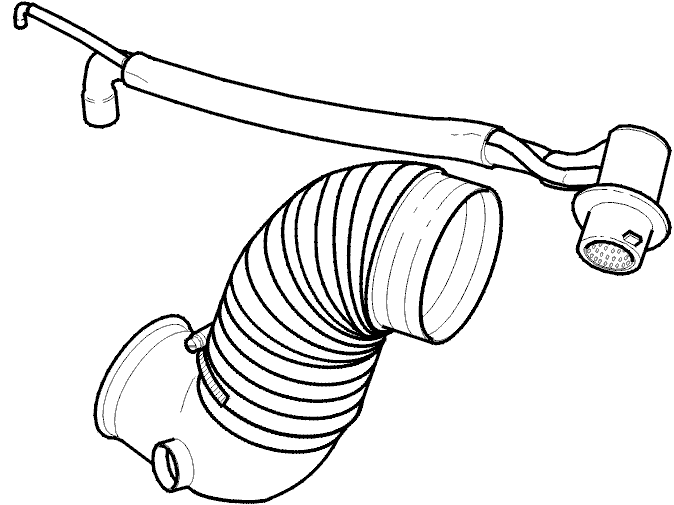

Fig 2: Identifying Crankcase Ventilation Pipe And Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

If the above pipe needs to be replaced, the pipe introduced in November 1995 should be used instead, P/N 9179305-9  .
