Checking/Replacing the Air Pump: Replacing: Remove

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

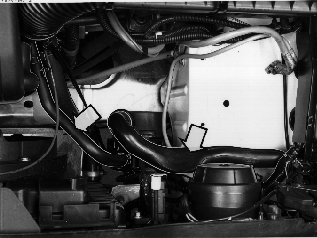

Fig 1: Identifying Air Pump Intake Pipe
GLL125994Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the air pump intake pipe from the pump.

Raise the car.
