Remove Front Splash Guard If This Has Not Already Been Done

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

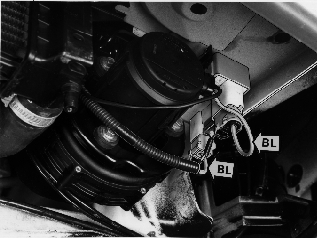

Fig 1: Locating Pump Connectors
GLL125992Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect connectors.

Remove cable ties.

Remove the three screws.

Lower the car.
