Remove the drive shaft from the hub

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

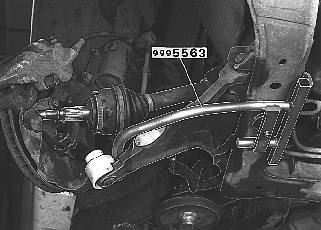

Fig 1: Identifying Holder
GLL125999Courtesy of VOLVO CARS OF NORTH AMERICA.

Install holder 9995563 to hold down the control arm.

Turn and fold out spring strut. Tap on the drive shaft end with a plastic or copper hammer and pull drive shaft out of the hub.

Clean off traces of metal adhesive from the spline joint (hub-drive shaft).
