Remove Drive Shaft From Transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

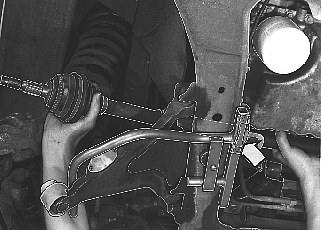

Fig 1: Identifying Drive Shaft And Holder
GLL126000Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bearing cap from the drive shaft support bearing.

Withdraw the drive shaft from the transmission.

Insert a plastic plug in the drive shaft hole.

NOTE: Take care not to damage the sealing ring in the transmission or the boot on the drive shaft.
