Detach the Link/Ball-Joint From the Stub Axle

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

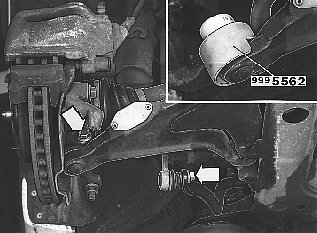

Fig 1: Identifying Protective Socket
GLL125998Courtesy of VOLVO CARS OF NORTH AMERICA.

Install protective socket 9995562 on ball joint.

Unhook the link from the anti-roll bar.
