Detach the Bracket For The Brake Line And ABS Cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

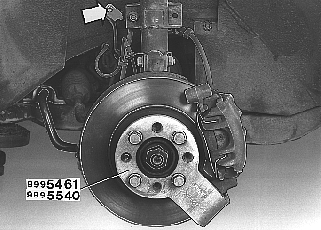

Fig 1: Locating Brake Line And ABS Cable Bracket
GLL125997Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook bracket and let it hang free.

Remove drive shaft nut.

Knock the drive shaft nut locking open.

Install counterhold 9995461 (4x wheel studs) alternatively counterhold 9995540 (5x wheel studs) and remove the nut.

Detach drive shaft end in the hub. Tap shaft in about 10-15 mm  . Use a rubber or copper mallet.
