Reinstall Drive Shaft In Hub

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

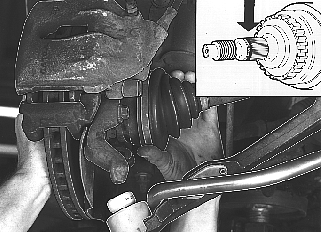

Fig 1: Reinstalling Drive Shaft In Hub
GLL126001Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Apply metal adhesive 1161370 on the drive shaft splines (see illustration).

Fold out and twist the spring strut and locate the drive shaft in the hub.

Install a new drive shaft nut finger tight.

NOTE: Oil the threads and flange.
