Right Drive Shaft, Reinstall: Install

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

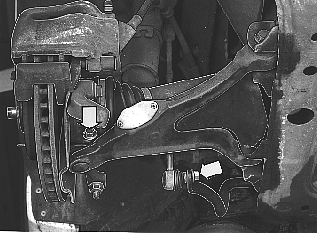

Fig 1: Locating Control Arm/Ball Joint And Anti-Roll Bar Link Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Control arm/ball joint to axle shaft. Remove holder 9995563 and sleeve 9995562 from ball-joint. Ensure that the ball joint pinion groove lines up with the screw hole in the stub axle. Use new lock nut on bolt. Tighten to 50 Nm .
Anti-roll bar link. Use new lock nut. Tighten to 50 Nm .

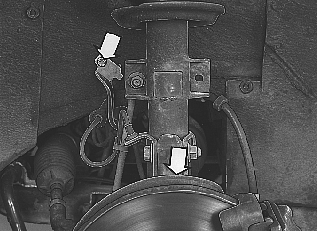

Fig 1: Identifying Brake Line/ABS Cable Bracket And ABS Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bracket for the brake line/ABS cable.

NOTE: Check that the ABS sensor seating is absolutely clean

Clean the ABS sensor first using a soft brush. Then install the small wheel spindle and tighten to 10 Nm .
