Removing the Exhaust Manifold

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

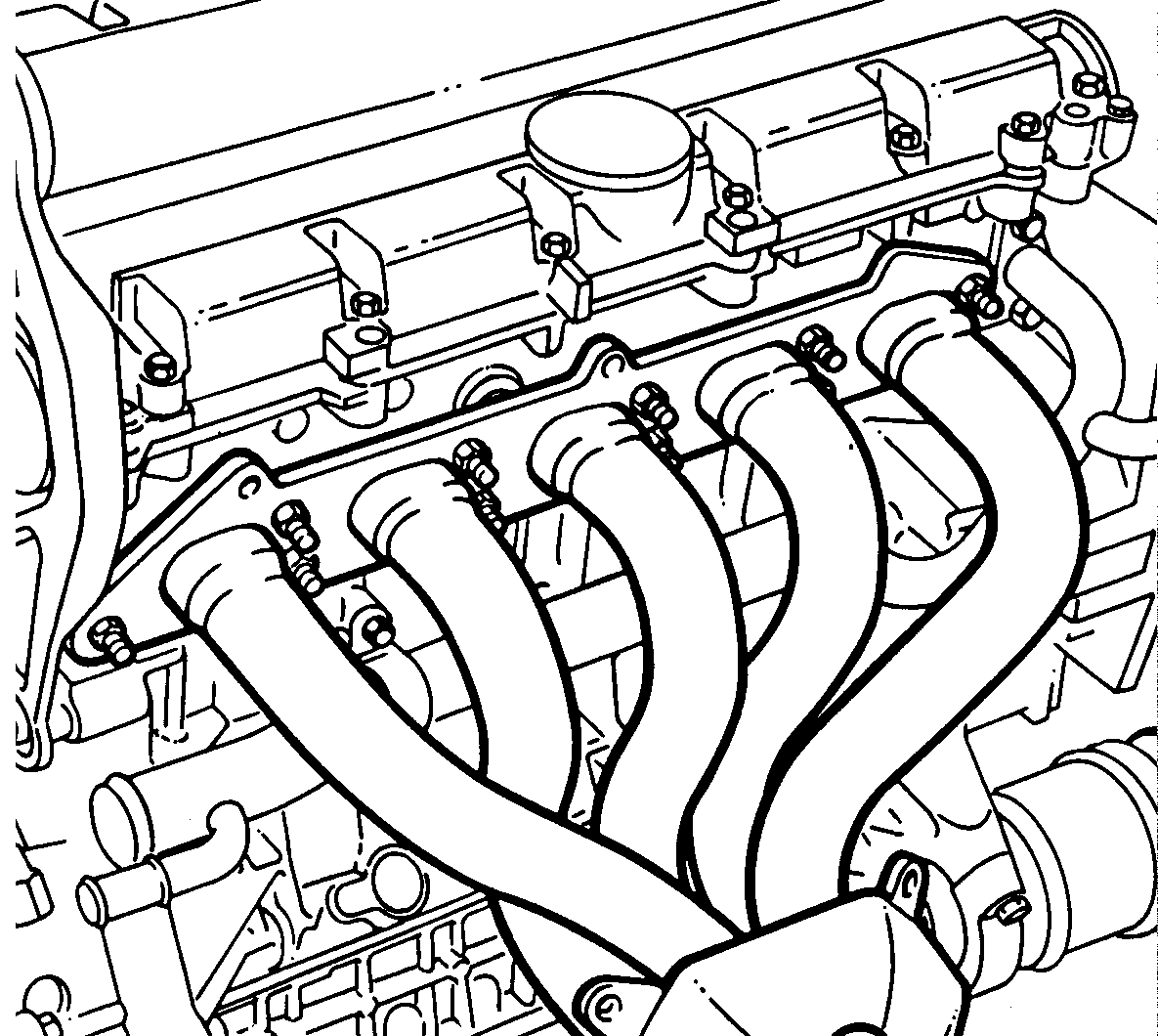

Fig 1: Locating Studs And Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the car.

Grease the stud bolts so they are easier to remove.

Remove 10 nuts from the exhaust manifold.

Raise the car.

Remove the exhaust manifold by lowering down.
