Final Operations: Install

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

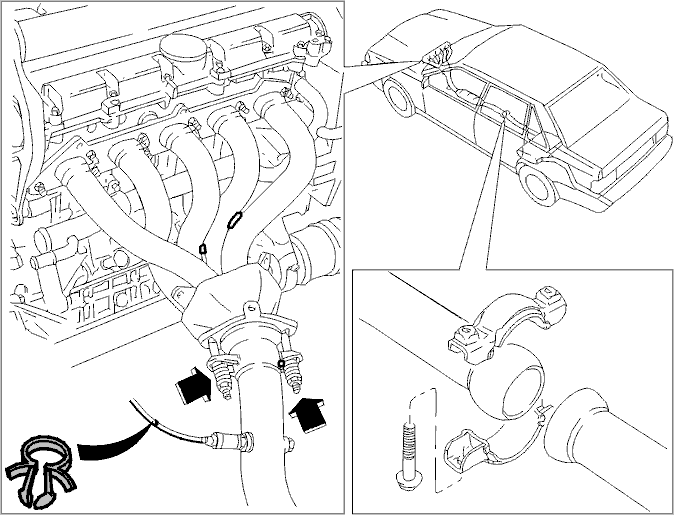

Fig 1: Locating Flange Joint Nuts And Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Front exhaust pipe to rear exhaust pipe.
Cross member.
Front exhaust pipe to exhaust manifold.

Use copper paste 1161408 on carriage bolts.

NOTE: Be careful with the sealing ring. If it is dropped on the floor a new sealing ring must be installed.

Clip the HO2S oxygen sensor wiring on the engine mounting.
Splash guard under engine.

Lower the car.

Install

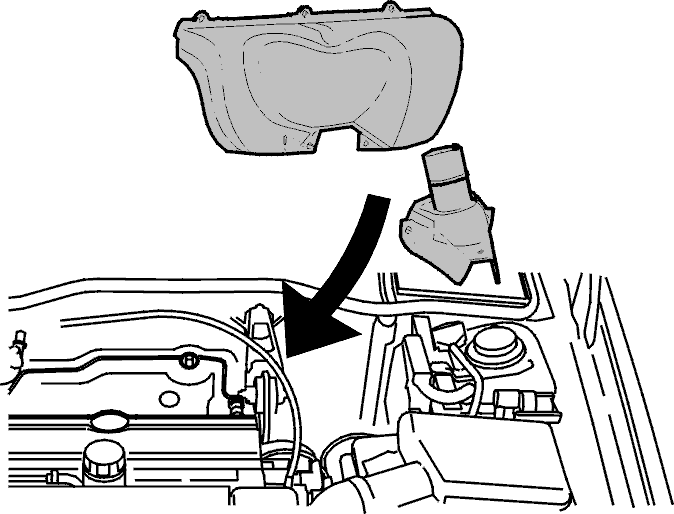

Fig 2: Identifying Preheating Plate And Heat Shield Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Preheating plate and heat shield plate.

Use copper paste 1161408 on the screws.

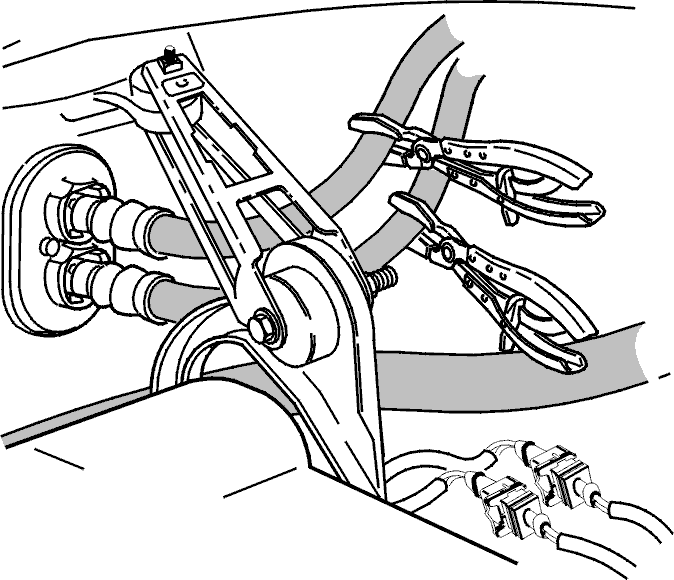

Fig 3: Removing/Installing Heater Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector halves for the HO2S sensor.

Reconnect the hoses to the heater in the firewall.

NOTE: Check that the quick-coupling has locked by pulling on the hoses.

Remove hose clamps.

Reinstall the air preheating hose.

Start engine.

Check engine coolant level and top up if required.
