Installing System Assembly

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

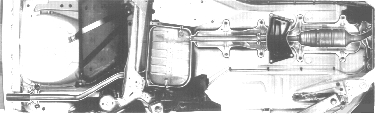

Fig 1: Locating Exhaust System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

To avoid tension in the system follow the following procedure:

Thread the silencer tail pipe between the floor and rear axle.
Then hang the silencer from the rubber mounts.
Install the three-way catalytic converter (TWC) and partially tighten the flanged joint to the exhaust manifold
Connect the exhaust system to the three-way catalytic converter (TWC), lubricate the terminal with copper paste (P/N 1 161 035-9). Align the other exhaust system components.
Tighten the three-way catalytic converter (TWC) to the exhaust pipe. Tighten the nuts to the top of the thread and then tighten to 10 Nm .
Tighten the front/rear pipe connections to 25 Nm .
