Remove the Exhaust Manifold

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

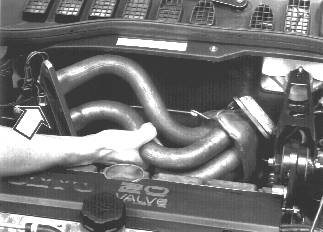

Fig 1: Identifying Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove two heat deflector plates from manifold.

Remove manifold from studs.

Turn manifold 90° to the right and lift up.

Check gasket face to cylinder head

CAUTION: Applies to cars with air conditioning (A/C): Do not damage the pressure switch (Pressostat) on the air conditioning (A/C) pipe.

NOTE: Studs should always be secured with strong thread seal, P/N 1161076-5, when installed.
