Install Exhaust Manifold

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

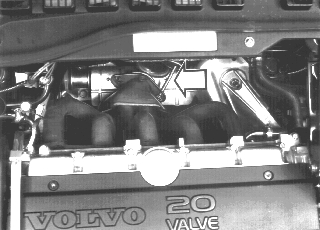

Fig 1: Identifying Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install manifold. Use new gaskets.

Locate the front exhaust pipe to the manifold with carriage bolts.

Tighten manifold to cylinder head. Torque to 25 Nm .

Reinstall the heat deflector plates.

Tighten the front exhaust pipe to the manifold. Use copper paste on the copper bolts. The nuts should be tightened to the top of the thread. Do not tighten more than 10 Nm .

NOTE: Do not forget to install the springs and washers as well as the two exhaust pipe nuts.
