Removing fuel pressure regulator

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

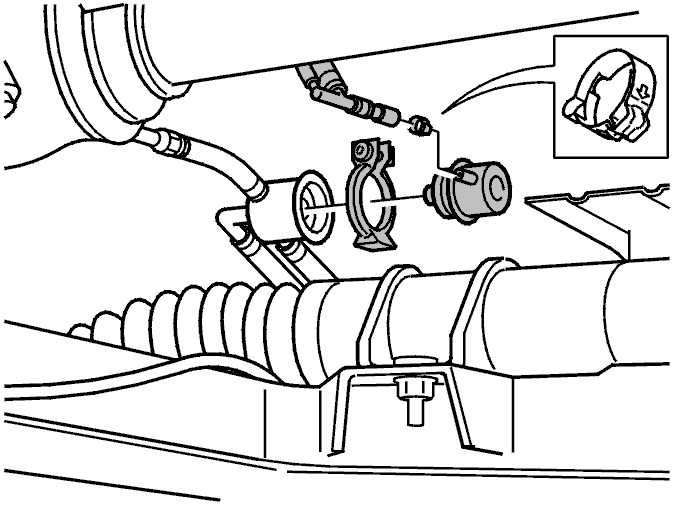

Fig 1: Identifying Fuel Pressure Regulator & Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Clamp Being Squeezed By Pipe Wrench

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the larger clamp (Torx 25).
Removing clamp:
- squeeze clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.
  NOTE: It is reusable.
Remove fuel pressure regulator.
Removing clamp:
- squeeze clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.
  NOTE: It is reusable.
Remove small clamp.
NOTE: The clamp will be reused.

Removing clamp:
- squeeze clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.
  NOTE: It is reusable.
Disconnect hose.
