New replacement part flywheel: Notes
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
For up to and including model year '95 850, only the following flywheels are available as replacement parts. The flywheels were introduced in model year '96.
| P/N new type of flywheel: | 9146880-1 | Non turbo |
| - | 1271572-8 | Turbo |
| - | - | - |
| Special tools: | 9814235-9 | Terminal repair kit |
When replacing the older version with the new flywheel the position of the engine speed (RPM) sensor wires must be reversed in the connector at the engine harness. If the wires are not reversed the vehicle will not start after the new flywheel is installed.
NOTE:
If the replaced flywheel is of the same type as the new one, there is no need for changing the position of the engine speed (RPM) sensor wires.

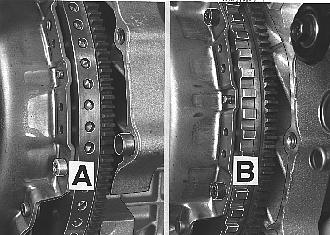

Older flywheels (A)
have holes drilled in them which provide the engine speed (RPM) sensor with signals.
The new version of the flywheel (B)
has milled grooves which provide the engine speed (RPM) sensor with signals.
