Checking the signal cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch ON Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connector(s) Disconnected

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Disconnect connector from EVAP canister shut-off valve.
Ignition on.
Connect an electrician's screwdriver (3 W bulb at least) between EVAP canister shut-off valve connector terminal 2 and ground.

Fig 3: Identifying 2-Bit Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.

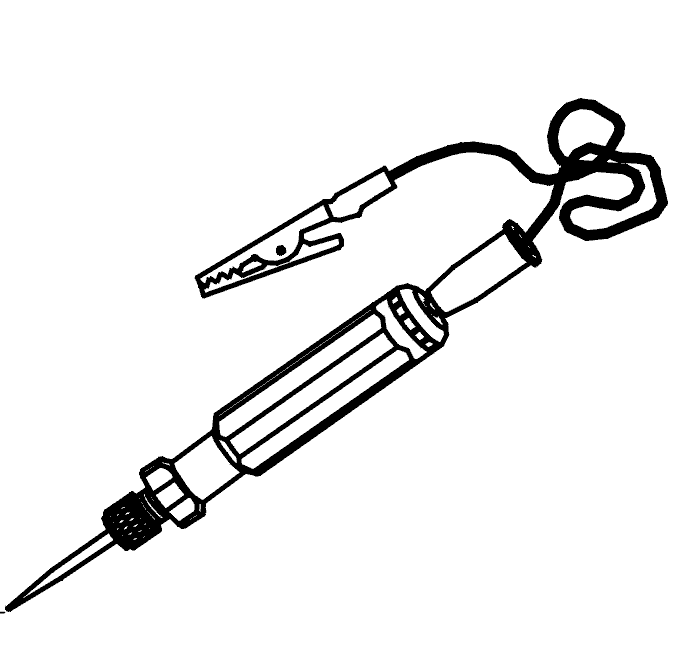

Fig 4: Identifying Electrician's Screwdriver
Courtesy of VOLVO CARS OF NORTH AMERICA.

The electrician's screwdriver should not light.

OK
Refer to Replacing EVAP canister shut-off valve
NOT OK
Refer to Checking for a short-circuit
