Connection of break-out box to connector A (black)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Control Module Disconnected

Courtesy of VOLVO CARS OF NORTH AMERICA.

Switch off ignition.
Disconnect ECM.
NOTE:
The ECM must not be removed from the car until the main relay has interrupted the supply. This may take up to 150 seconds after the ignition has been switched off.
- Plug adapter 9511351 into ECM base and connect break-out box 9813190 to adapter.

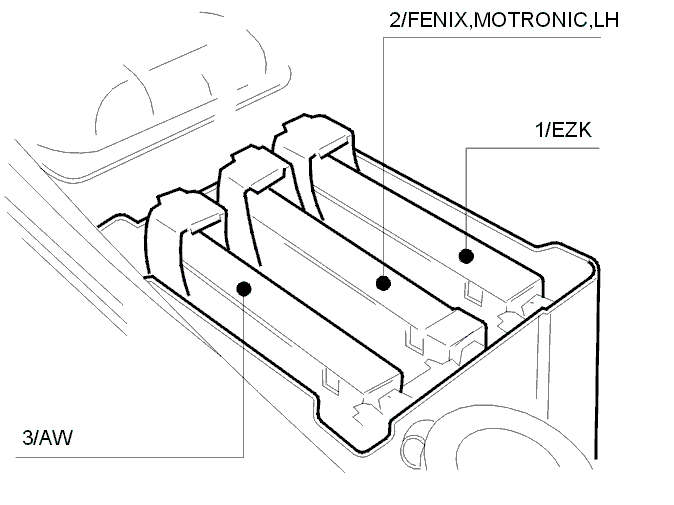

Fig 3: Identifying Adapter, ECM Base & Break-Out Box
Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue
Refer to Checking ground terminals
