Checking for open-circuit, contact resistance and oxidation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check ground terminals 31/32 and 31/33 at rear of engine and associated wiring for open-circuit as per Open-circuit, permanent faults , and for contact resistance and oxidation as per Contact resistance and oxidation .
Check ground lead between engine and chassis for open-circuit as per Open-circuit, permanent faults , and for contact resistance and oxidation as per Contact resistance and oxidation .

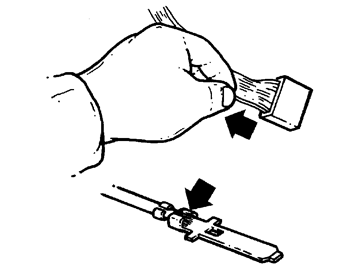

Fig 2: Identifying Cable Check

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press Continue when fault is repaired.

Continue
Refer to Verification
