Measuring line pressure
WARNING: This page is about a different car, the 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

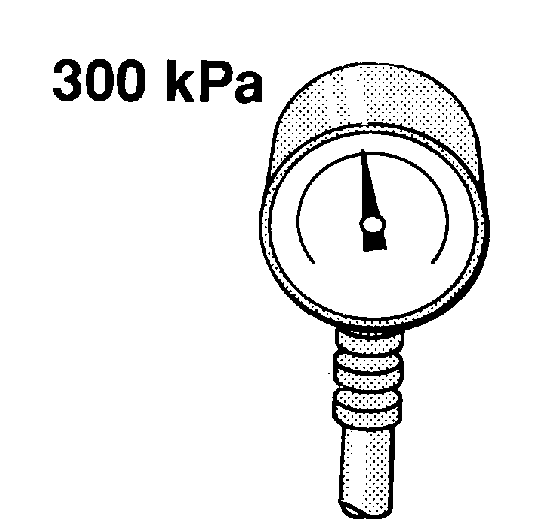

- Read off line pressure from pressure gauge.
Line pressure should be 300 kPa (3.0 kp/cm 2).
- OK
Refer to Checking fuel filter
- LOW
Refer to Line pressure too low
- HIGH
Refer to Line pressure too high
- Read off line pressure from pressure gauge.
Line pressure should be 300 kPa (3.0 kp/cm 2).
- OK
Refer to Stop fuel pump (FP)
- NOT OK
Refer to Information
