Remove the engine coolant fan (FC)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

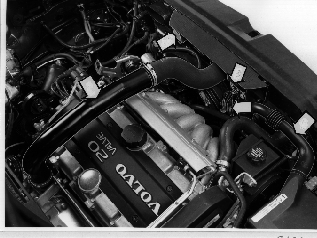

Fig 1: Identifying Engine Coolant Fan (FC) Shroud Screws, Fan Shroud Relays, Air Duct And Fresh Air Intake

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove relays from the fan shroud, separate the relay and fan connectors, put wiring to one side.

Remove the air duct for cooling the control module box. Disconnect both canister hoses and valve from the radiator.

Remove the four fan shroud screws and the upper charge air pipe from the turbocharger. Slide the fan shroud slightly backward and remove the upper fan shroud. Remove upper charge air pipe.

Remove fresh air intake from radiator and disconnect vacuum hoses to Turbocharger instruments and EGR-regulator.

CAUTION:

Protect the radiator with a hard sheet or similar. Alternative protection 9995474.
