Remove engine with transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

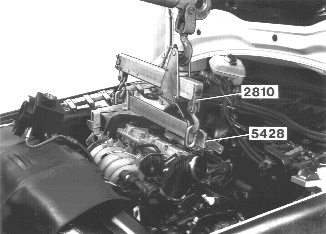

Fig 1: Identifying Lift Yokes And Lifting Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift power steering pump and put it to one side.

Remove front engine pad when lifting.

Remove engine, use lift yokes 9992810 (in version with lifting arm 9995428 .

Adjust lifting angle during the lift (a relatively large angle is required).

Automatic: Remove turbocharger (TC) oil cooler hoses with valve, from oil pan right side.

CAUTION:

Check carefully that the driveline is clear of the bodywork and other optional extras.
