Drain coolant

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

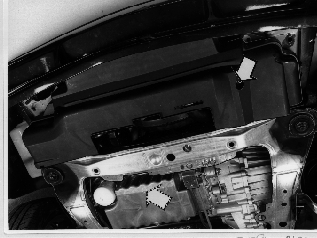

Fig 1: Identifying Radiator Drain Nipple
GLL125812Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove expansion tank cap.

Raise the car.

Automatic:  Remove air guide under engine.

Open the engine and radiator nipples. Thread hoses onto the nipple to collect the coolant.

Disconnect the lower charge air pipe from charge air cooler (CAC) lower sleeve connector.

Close the nipples.
